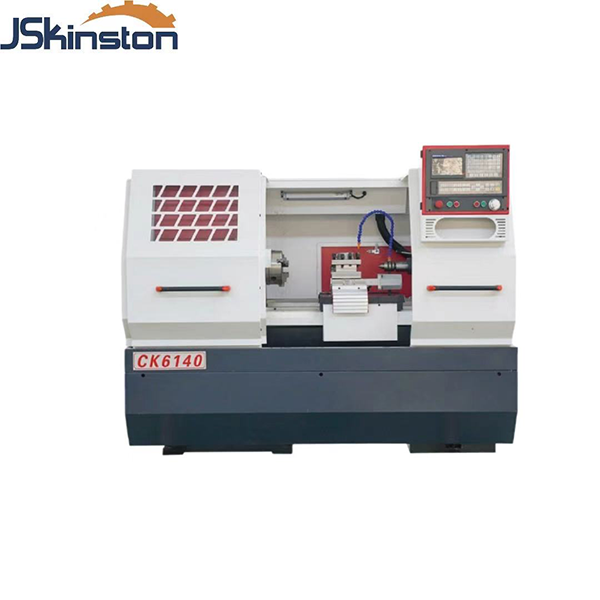

CK6132/6140 Flat Bed CNC Lathe with Large Swing Over Bed

CK6132/6140 Flat Bed CNC Lathe with Large Swing Over Bed

The CK6132 and CK6140 are flat bed CNC lathes designed for efficient, high-precision turning of small to medium-sized workpieces. These models are widely used in general machining shops, automotive parts manufacturing, hydraulic component production, and vocational training environments. The key difference between the two lies in their swing capacity: the CK6132 offers a swing over bed of 320mm (approx. 12.6 inches) , while the CK6140 provides a larger 400mm (approx. 15.75 inches) swing capacity. Both feature a traditional flat bed construction that delivers excellent rigidity and stability for consistent machining results.

Sipariş (Minimum Sipariş Miktarı) :
1
Ürün Menşei :
China
Nakliye Limanı :
Shanghai
Kurşun zamanı :
40
Ağırlık :
1700kg

Şimdi bilgi alın

Features

CK6132/6140 Flat Bed CNC Lathe

The CK6132 and CK6140 flat bed CNC lathes offer an affordable, reliable, and easy-to-use entry into automated precision turning. With their rigid flat bed construction, precision ground guideways, and user-friendly CNC controls, these machines deliver consistent accuracy for small to medium parts without the complexity or cost of high-end slant bed designs. Whether you are a small workshop owner, a vocational trainer, or a maintenance technician, the CK6132 and CK6140 provide the perfect balance of capability, simplicity, and value.

Applications:

1.Small parts manufacturing: Shafts, bushings, pins, bolts, nuts, and fittings.

2.Hydraulic components: Valve stems, cylinder rods, and connector bodies.

3.Automotive repair and parts: Brake components, suspension parts, and engine fittings.

4.General job shops: Custom parts, prototypes, and repair work.

specification


ITEM	UNIT	CK6136/6140
Max Swing over bed	MM	360/400
Max Swing over cross slide	MM	220
Max work length	MM	600/850
Max. Z axis Travel	MM	750/1000
Max X axis Travel	MM	250
Spindle bore	MM	60
Spindle nose		A2-6
Spindle speed range	RPM	100-2500
Spindle type
Bed width	MM	330
x/z fast feed	MM/MIN
x/z cutting travel speed	MM/MIN
Number of tool turret		4/6/8
Tool shank type	MM	20*20
Positioning accuracy	MM	X≤0.010 Z≤0.015
Repeatability Positioning accuracy	MM	X≤0.0075 Z≤0.010
Min unit set	MM	0.001
roundness	MM	≤0.007
Diameter uniformity	MM	≤0.03(legth.300)
Flatness	MM	≤0.02(dia.300)
Surface Roughness (Steel)	UM	RA1.6
Dia. of tailstock sleeve	MM	60
Tailstock sleeve taper		MT4
Max Tailstock sleeve travel	MM	140
Spidle dive motor power	KW	5.5
Coolant pump power	W	120
L x W ×H	MM	2150×1400×1600
Weight	T	1.7

product introduction

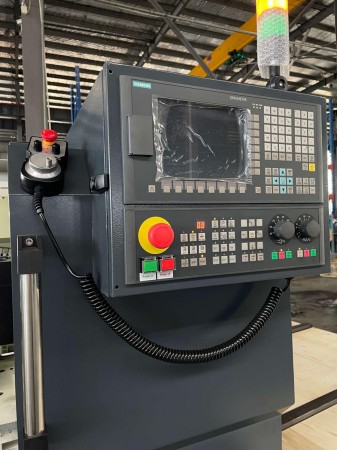

User-Friendly CNC Control

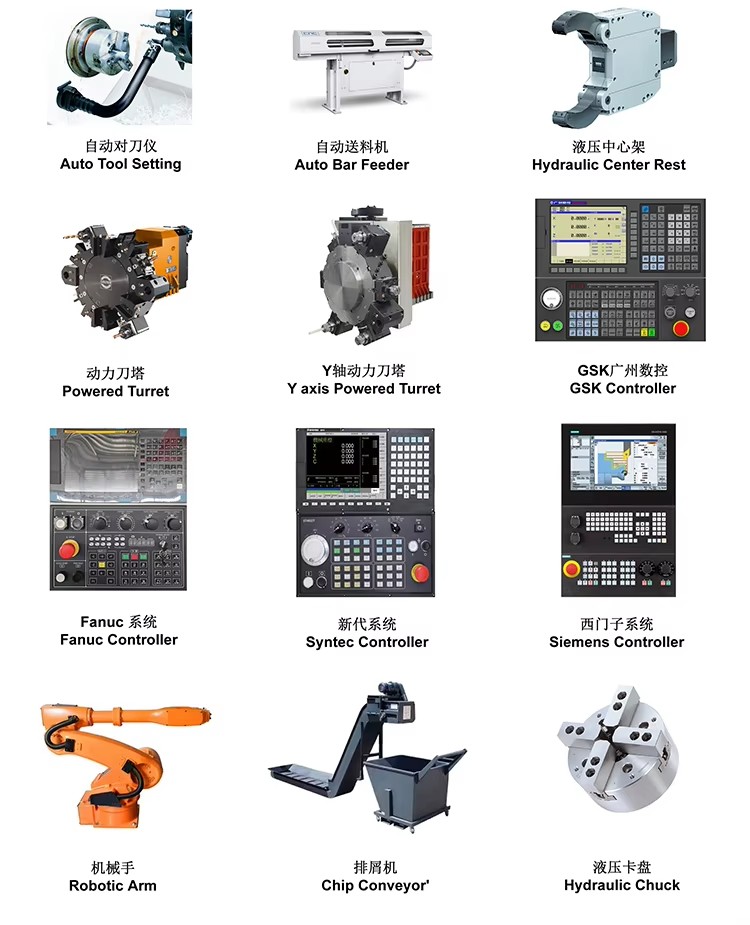

Compatible with popular CNC controllers (Siemens, Fanuc, GSK, KND, etc.) , these machines offer intuitive programming options including G-code and conversational programming. Ideal for both batch production and one-off custom parts.
Cost-Effective CNC Solution
The flat bed design significantly reduces manufacturing costs compared to slant bed machines, making the CK6132 and CK6140 affordable options for small workshops, startups, and training centers. You get full CNC capabilities without the premium price tag.
Precision Ground Guideways for Accuracy
The bed features precision-ground, induction-hardened guideways that ensure long-term accuracy and wear resistance. Both models achieve positioning accuracy of ±0.005mm and repeatability of ±0.003mm, suitable for most general precision turning applications.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

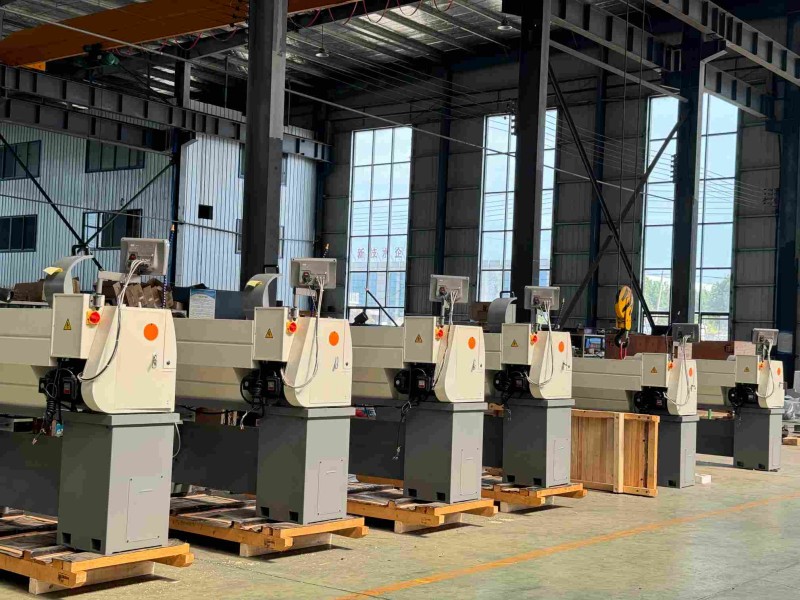

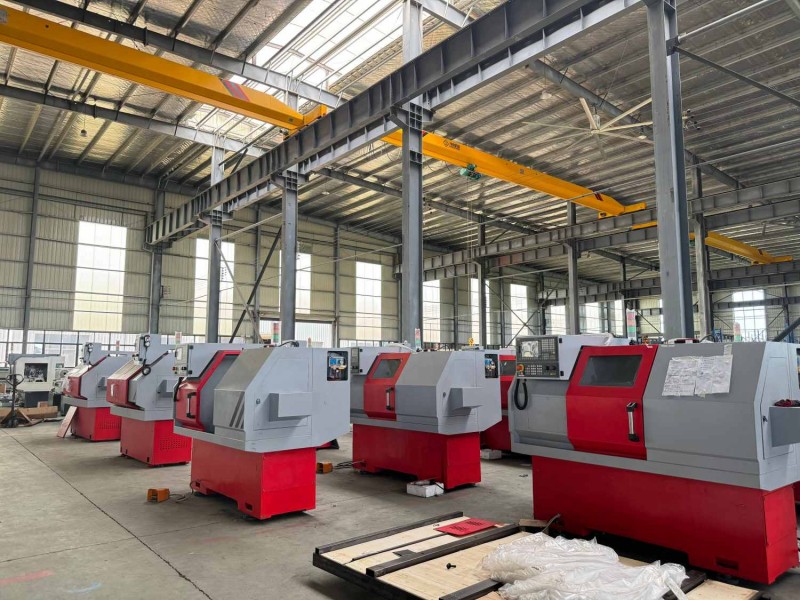

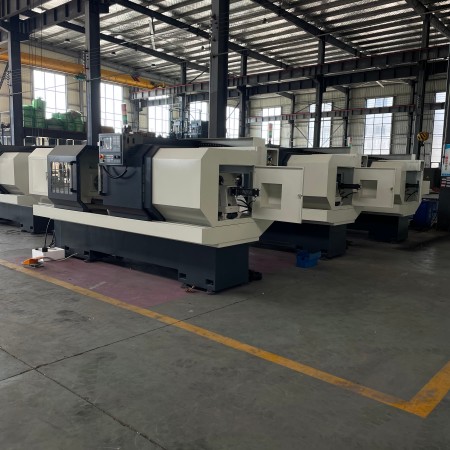

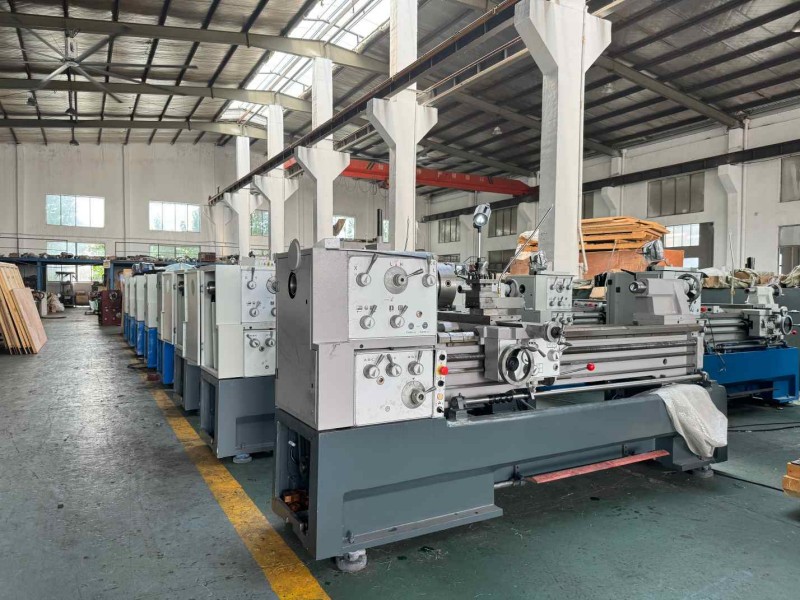

factory show

Professional Production Base, Strength in Precision Manufacturing

Competitive price CNC lathe GSK980TDi control 2-axis CNC lathe machine Precision Engine Lathe

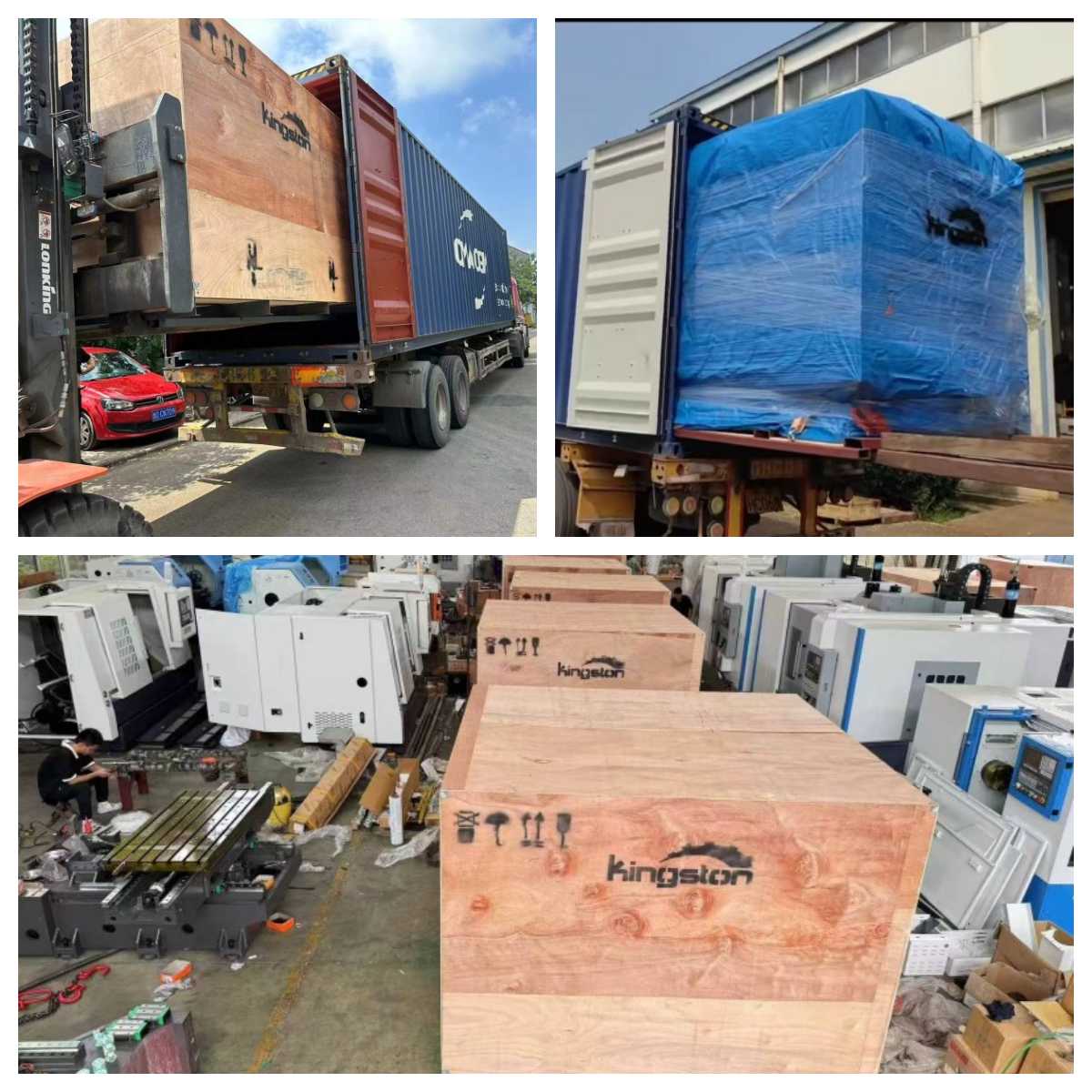

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

high precision lathe
Heavy machinery manufacturer

1.What CNC control systems are compatible?

These lathes are compatible with popular CNC controllers including Siemens, Fanuc, GSK, KND, and other standard systems. Please specify your preference when ordering.

2.What materials can these lathes machine?

The CK6132 and CK6140 can machine steel, stainless steel, cast iron, aluminum, brass, copper, and various plastics. Their wide spindle speed range (100-2500 rpm) allows optimal cutting parameters for different materials.

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.What is the spindle bore size?

Both models come with a standard 52mm spindle bore, with an optional 60mm spindle bore available for machining larger diameter bar stock.
