High Precision Automatic Cutting Y3180E Gear Hobbing Machine

High Precision Automatic Cutting Y3180E Gear Hobbing Machine

Gear Hobbing Machine adopts heavy-duty cast iron bed to reduce vibration and ensure long-term stable precision. With rigid spindle structure and accurate gear transmission system, it keeps consistent machining accuracy for small batch and mass production. Mechanical models feature simple operation and low maintenance cost, while CNC models support automatic feeding, hobbing shifting and dry & wet cutting.

Sipariş (Minimum Sipariş Miktarı) :
1
Ürün Menşei :
China
Renk :
Optional
Nakliye Limanı :
Shanghai
Kurşun zamanı :
30
Ağırlık :
5500kg

Şimdi bilgi alın

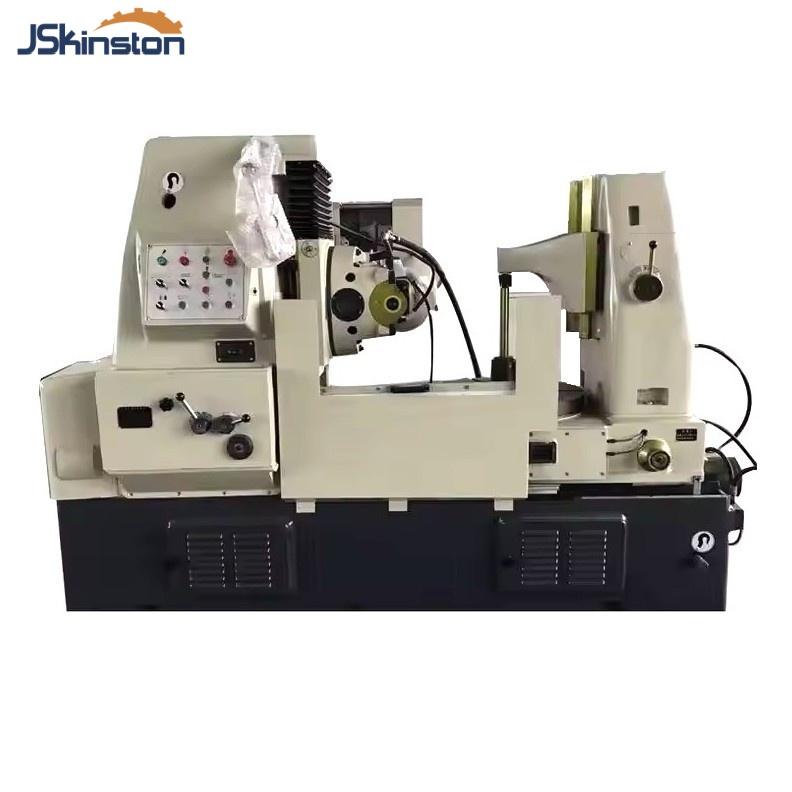

Y3180E Gear Hobbing Machine

Our gear hobbing machine covers conventional mechanical type and CNC automatic type. It cuts spur gears, helical gears and worm gears steadily. Solid cast iron body guarantees rigid cutting and long service life. Suitable for small workshops and large batch gear manufacturing. Factory direct supply, fast shipment and customizable technical parameters. Contact us to get catalog and best price.

specification


Specification	Y3180E	unit
Max. workpiece diameter	With auxiliary column: 550	mm
Max. workpiece diameter	Without auxiliary column: 800	mm
Max. module	10	m
Max. machining width	300	m
Min. number of workpiece teeth	Z: 6 K: Number of hob threads	mm
Max. vertical travel of hob slide	350	mm
Max. swivel angle of hob slide	240°	°
Distance from hob axis to worktable surface	Max.: 585	mm
Distance from hob axis to worktable surface	Min.: 235	mm
Spindle taper	Morse No.5
Permitted hob mounting size	Max. diameter: 180	mm
Permitted hob mounting size	Max. length: 180	mm
Max. axial travel of hob	50	mm
Hob arbor diameters	22, 27, 32, 40	mm
Center distance between hob axis and worktable spindle	Max.: 550	mm
Center distance between hob axis and worktable spindle	Min.: 50	mm
Hydraulic rapid travel of worktable	50	mm
Worktable bore diameter	80	mm
Workpiece mandrel seat taper	Morse No.5
Worktable diameter	650	mm
Spindle speed stages & speed range	8 stages, 40–200 r/min	r/min
Rapid traverse speed of hob slide	≤540 mm/min	mm/min
Worktable rapid traverse speed	≤500 mm/min	mm/min
Distance from worktable surface to outer support bearing end face	Min.: 400 mm	mm
	Max.: 600 mm	mm
Axial feed stages & feed range	12 stages, 0.4–4 mm/r	mm/r
Main motor power & synchronous speed	5.5 kW, 1500 r/min	r/min
Axial feed stages & feed range	12 stages, 0.4–4 mm/r	mm/r
Worktable rapid motor power & synchronous speed	0.55 kW, 1500 r/min	mm/min
Net weight of machine	5500	kg
Overall machine dimensions	2852 × 1490 × 1870	mm

product introduction

1.Heavy cast iron bed, strong rigidity, low vibration

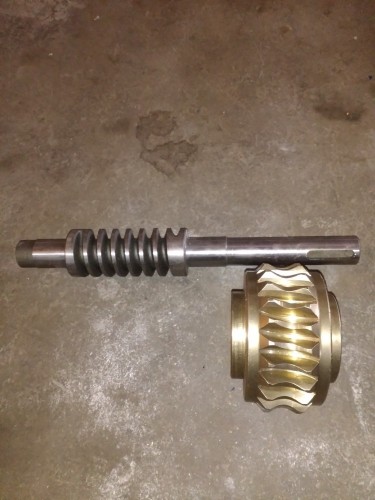

2. Process spur gear, helical gear, worm & sprocket

3. Mechanical model: easy operation, low cost

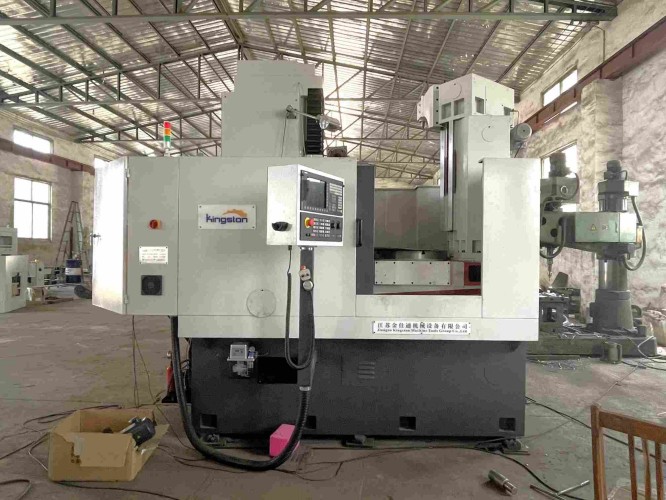

4. CNC model: multi-axis servo control, high precision

5. Support dry cutting & wet cutting

6. Stable accuracy for batch production

7. Custom workpiece diameter & gear module

8. Factory inspection, one-year warranty

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Q: What kinds of gears can this gear hobbing machine process?
A:It can process spur gears, helical gears, worm gears, splines, sprockets and other cylindrical gears, widely used in automobiles, motors, reducers and machinery parts.

Q: Do you offer both mechanical and CNC gear hobbing machines?
A:Yes. We have conventional mechanical models such as Y3180E and multi-axis CNC automatic gear hobbers. We can match machines according to your production batch and precision requirements.

Q: Can you customize the processing parameters of the gear hobbing machine?
A:Customization is available. We can adjust the maximum workpiece diameter, gear module, travel and install different control systems to meet your processing needs.

Q: What is the warranty period for your gear hobbing machine?

A:We provide one-year warranty for the whole machine. Core components are strictly inspected before delivery, and we offer long-distance technical guidance and spare parts supply.
